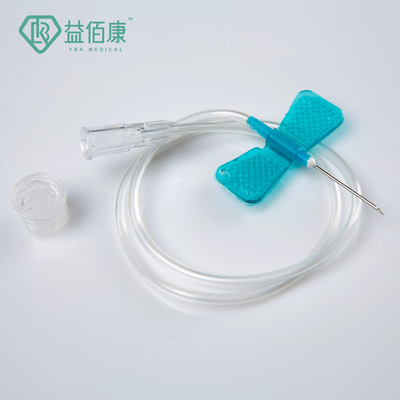

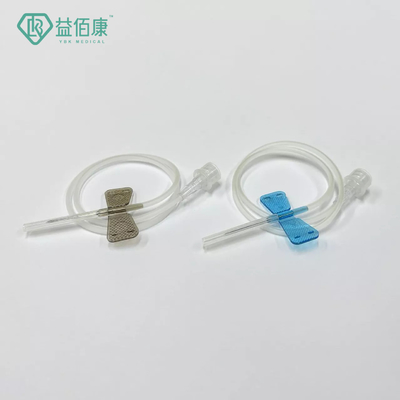

Butterfly Scalp Vein Set 20g-25g Blue Black Green Winged Blood Collection Set

Butterfly Scalp Vein Set 20g-25g Blue Black Green Winged Blood Collection Set

Product Details:

Place of Origin: China
Brand Name: JINGZ, YBK
Certification: CE, ISO13485, ISO9001
Model Number: 20G-25G

Payment & Shipping Terms:

Minimum Order Quantity: 50000pcs
Price: USD0.042-0.062/pc
Packaging Details: 100pcs/bag, 5000pcs per carton
Delivery Time: 25-30 work days
Payment Terms: T/T, L/C, D/P
Supply Ability: 20 million pcs per month
Get Best Price Contact Now

Detail Information
Gauge Color: Blue, Black, Pink, Orange, Green Needle Material: ABS, Rubber, SUS304 Stainless Steel Cannula, Silicon Oil
Use: For Infusion Of IV Fluids, Especially For Children Gauges: 20-25G
Pipe Length: 5/8 Inch, 3/4 Inch, 1inch, 1.5inch Sterilized Way: EO Gas Sterilization
Packing: 1pc/ Separate Bag, 100pcs/bag, 5000pcs Per Carton
High Light:

Scalp Vein Set 20g

,

Scalp Vein Set 25g

,

25g Winged Blood Collection Set

Product Description

Scalp needle for Blood collection

Scalp Vein Needle 20G-25G Blue Black Green Winged Infusion Set Blood Collection Butterfly Needle



A winged infusion set—also possibly known as "butterfly" or "scalp vein" set—is a device specialized for venipuncture: i.e. for

accessing a superficial vein or artery for either intravenous injection or phlebotomy.

It consists, from front to rear, of a hypodermic needle, two bilateral flexible "wings", flexible small-bore transparent tubing (often 20–35 cm long), and lastly a connector (often female Luer).

This connector attaches to another device: e.g. syringe, vacuum tube holder/hub, or extension tubing from an infusion pump or gravity-fed infusion/transfusion bag/bottle.



  •  20-25 Gauge needle. Its size and gauge allow medical and aesthetic practices to efficiently extract blood from superficial veins or infuse intravenous medication into a patients body.
  •  Single-use product. Each needle is sharp and smooth enough to minimize pain and discomfort. Its also sterilized and meant for single use to minimize the risk of contaminating or infecting patients during the injection.
  •  Safety features for administering needles. The butterfly needle's wings allow you to administer the needle into the skin with one hand. This can give you more control over how you administer extractions or infusions and provide you with better accuracy.

Specification Available

Components & materials:

  •  Needle: stainless steel
  •  Tube: PVC or polyurethane (PUR)
  •  Connector: Protective cap



Needle:

  •  Length: between 10 and 30mm
  •  External diameter: between 0.3 and 2.1mm
  •  Mounted on a base, of variable size, with two flexible fins that are used for anchoring and attaching the needle.
  •  Usually triple bevelled.
  •  Silicone-coated to make insertion easier.



Tube:

  •  Supple
  •  Length: between 10 and 30cm
  •  Internal volume: between 0.15 and 2.5ml



Connector:

  •  Female Luer
  •  Usually interlocking
  •  Equipped with a bung; permits the attachment of an infusion set.



The sheath is open at both ends.

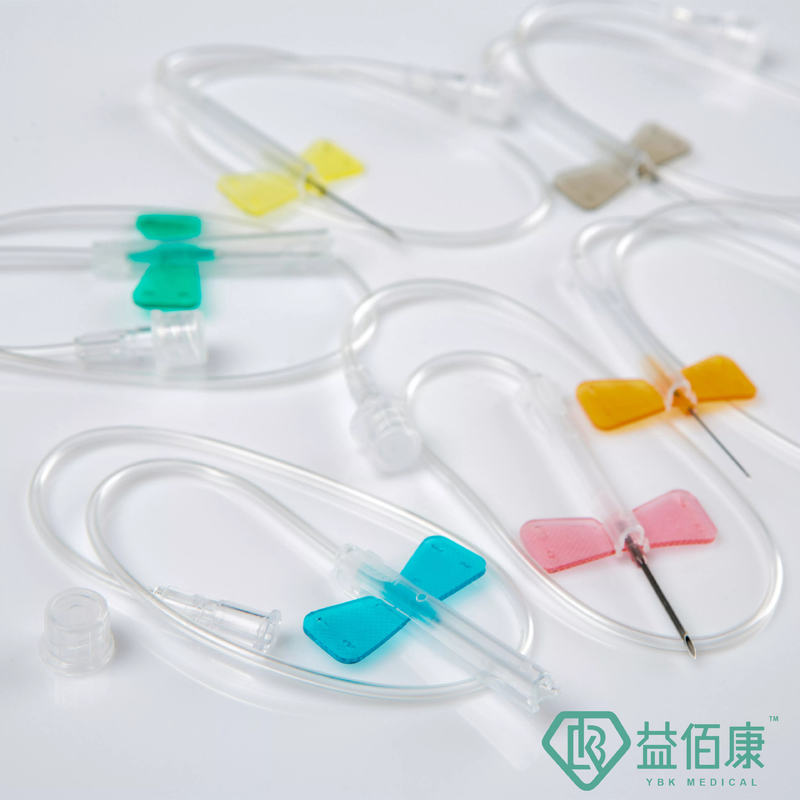

The needles are colour coded (visible on the fins), but the code has not yet been standardized.

The external diameter of the needle (mm and gauge), is inscribed on the fins.

Unit, sterile, disposable presentation.



Size Color Length Tube length Packing
OD(mm) Gauge   5/8" 3/4" 1" 1.5" 12"
0.5 25G *Orange √ √ √ √ √

Individual package, 100pcs/bag, 5000pcs/carton;

About 0.8million pcs for 20ft container;

About 1.6million pcs for 40ft container
0.55

24G

*Purple

 √ √ √ √ √
0.60 23G *Blue √ √ √ √ √
0.70 22G *Black √ √ √ √ √
0.80 21G *Green √ √ √ √ √
0.90 20G *Yellow √ √ √ √ √

ADVANTAGES OF WINGED SOFT NEEDLE

  •  Minimizes pain and discomfort. The sharp needle will minimise the resistance of the skin to the point of penetration. This will make the whole experience easier, safer and less painful for your patient.
  •  Stabilizes your injection. Durable plastic flaps allow the needle to remain in place after injection into a vein. This will reduce the amount of pain, tissue damage, and potential disruptions that can be caused if a patient moves during treatment.
  •  Minimizes the risk of damage from injections. Unsupported needles used for longer processes like extractions or infusions have a risk of vein collapse, bleeding, nerve injury, and other injuries. But with the butterfly needle's stabilizer, you can minimize movement and keep the needle within its place.



USE INSTRCUTIONS

Butterfly Scalp Vein Set 20g-25g Blue Black Green Winged Blood Collection Set 0

1. Please tighten the interface between the hose and the needle seat 180 degrees clockwise to avoid leakage of vacuum or blood during blood collection;

2. Choose a thick and straight main vein and perform venipuncture. After successful puncture, blood return can be seen;

3. Puncture the tube plug vertically into the rubber plug;

4. Take the blood collection tube that has been collected and shake it at the same time. The shaking method is 180 degrees for 5-8 times;

5. The last tube is collected to a distance of 0.5ml from the rated blood collection volume, loosen the pressure on the cuff, pull out the venipuncture needle, let the blood in the hose flow into the blood collection tube, and then pull out the tube and plug the puncture needle;

6. After blood collection, put the blood collection needle in the recycling bin.





FAQ

1. Are you factory?

  Yes, our factory was established in 2005 in Jiangxi Xiaolan Industrial Park as Jiangxi Exquisite (JINGZ) Technology Co., Ltd. with full production line and medical certificates. YBK Medical is a full subsidiary of JINGZ and is committed to providing better products and services to our clients.



2. How can I contact your company?

   Send us an email at sales@ybkmed.com, jingz08@jxjzkj.cn or Whatsapp: 008615084880052. Welcome to visit our factory in Nanchang, Jiangxi.



3. Can I have a sample order?

   Yes, of course. We can prepare samples for you as need.



4. Do you have an MOQ for blood tube and needle?

   Yes, MOQ 50000pcs(10 cartons) for each gauge.



5. Is it ok to print our logo on label and packing carton?

   Yes, we offer OEM/ODM service for our products. But OEM minimum quantity needs 200,000pcs.



6. Payment terms and shipment?

   Payment terms can be TT, L/C or Alibaba pay. It can be negotiable.

   Delivery terms can be EXW, FCA, FOB, CIF, CFR.
